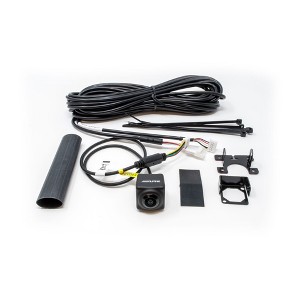

Alpine HCE-C2600FD Multi-View Front HDR Camera System

Designed for use with Alpine Touch-Screen Receivers First Alpine Cameras with HDR! The new CMOS image sensors have HDR which allows very large variances in light to be handled without washing out the image or being too dark. 4 different viewing angles for up to 180°of vision left and right making it easy to what’s lurking around the corner, behind you. Great for X209-WRA 9" Jeep Wrangler Restyle Receivers. With the new Off—Road UI for X209-WRA, you’re able to navigated through tough maneuvers while monitoring tilt and position. Power Requirements - 6.0v Dc Ground Type - Negative Ground Type Max Power Consumption - 1.2w @ 6v Output Image - Normal Image, Cvbs (NTSC Video Signal) Image Output For 16:9 Wide-Screen Image Output Impedance - 75 Ohms (1vp-p) Image Sensor - 1/4 Inch Cmos Image Sensor, 4:3 Aspect Ratio Effective Number Of Pixels - 1280 X 960 - 1.2 Megapixels Lens Section - Focal Length F=1.27mm, Brightness F=1.8 Angle Of Field - Approximately 180° Horizontally, Approximately 70° Vertically Automatic Image Adjusting Function - Automatic Exposure Adjustment, Automatic White Balance Adjustment Syncronization System - Internal Synchronization Luminance S/N - 8.41 Lx Resolution (horizontal) - 330 Tv Lines Or More Illumination Range - Approximately 1.5lx To 100klx Operating Temperature Range - 158°F To -22°F Water Resistance - Ip68
